Basic Info.

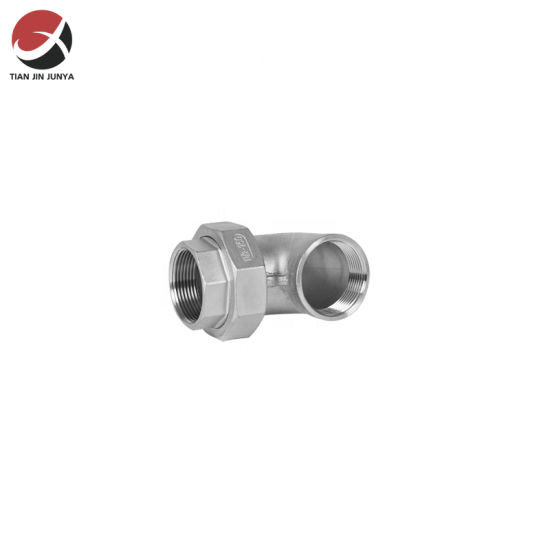

Female Thread Casting Pipe Fitting Stainless Steel Union Elbow
Function Description:
Description: | Stainless Steel 304 316Union Elbow |
Main Materials: | Stainless steel 304/304L/316/316L |
Working pressure: | 150 LB pipe fittings |
Applicable temperature: | -20°C to +220°C |
Size Range: | 1/8"- 2" |
Thread : | BS21 (BSPT&BSPP), ANSI/ASME B1.20.1 (NPT), DIN2999(R/RP),JIS B 0203/2(PT), KS B0221/2(PT), etc.. |
Fabrication: | Lost Wax Casting Precision Casting Technology |
Designs | 1.Asperthecustomer'sdrawings |
2.Asperthecustomer'ssamples | |
Surfacetreatment | 1.Polish |
2.Pickling | |
Service | OEMserviceavailable |
Products | Allkindsofstainlesssteelcasting:include pipe fitting, ball valve, automotiveparts,railroadparts,medicalparts,marineparts,lightingparts,pumpbody,valveparts,architecturalpartsandfurniturepartssoon |
Advantage | |
1.With 5yearsinstainlesssteelcasting; | |
2.NearTianjin PortandAirPort;(Convenient Transportation) | |
3.Weprovide:OEMstainlesssteellostwaxcastingsandOEM machiningservicesforstainlesssteellostwaxcastings.Wehave:CNCMachining,CNCturning,CNCMilling,3DCMMInspectionandCNCOpticalInspection.Webelieve:ontime,stablequality,justprice,clientconfidentiality. | |
4.Withsamplesandorder:Wecanofferdimensionreport,materialcertification. | |
Inspection: | 1.Dimensionreport |
2.Materialcertification | |
Packing: | Exportcartonandfumigationwoodenpall |
Sample: | Offer free samples and freight collected. |
OEM and ODM: | Accepted and professional. Buyer's drawing or designs are available |
Material test report: | is available upon request when placing order. |
Quality Control
1) Checking the raw material after they reach our factory------- Incoming quality control ( IQC)2) Checking the details before the production line operated3) Have full inspection and routing inspection during mass production---In process quality control(IPQC)4) Checking the goods after they are finished---- Final quality control(FQC)5) Checking the goods after they are finished-----Outgoing quality control(OQC)
Our wax casting product processed by 79 steps with high standard and 100% inspection. Along with the power of our advanced machine, quality is something you do not need to worry about.
